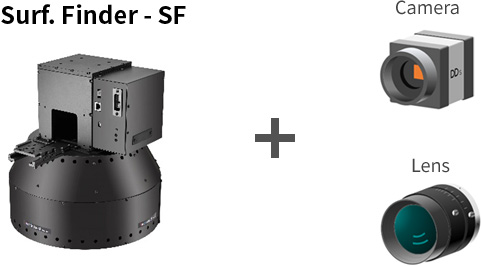

Compatibility Check

Model

Cameras/Frame grabbers with proven compatibility

Cameras/Frame grabbers with proven compatibility
Interface Vendor Model
USB 3.0, 3.1 IDS UI-xxxx
USB 3.0 Basler All kinds
Camera Link
@10Tap		 Camera : all kinds
Grabber : Euresys		 Camera : all kinds
Grabber : Grablink full

Lens with proven compatibility

Lens with proven compatibility
Vendor Model
RICOH FL-BC5024-9M
RICOH FL-BC7528-9M
Computar V5024-MPZ
KOWA LM-50FC

〈 Specifications 〉

Specifications
TYPE Camera & F.grabber
Vendor(model)		 Camera sensor size
/ no. of pixels		 Lens vendor/Model Lens mag. FOV
(㎟)		 Pixel - resolution
(um)		 Min. SOPM acq. Speed**
(s / 7 image-data save)
USB3.0 IDS (UI-3370CP-M-GL R2) 1”/4MP (2048 x 2048) Ricoh / FL-BC5024 9M X 0.19 60 x 60 30 0.32 sec
USB3.0 IDS (UI-3370CP-M-GL R2) 1”/4MP (2048 x 2048) Ricoh / FL-BC7528 9M X 0.26 44 x 44 22 0.32 sec
USB3.1 IDS (UI-3000SE-M-GL) 1.1”/12MP (4104 x 3006) Ricoh / FL-BC5024 9M X 0 .19 73 x 54 30 0.60 sec
USB3.1 IDS (UI-3000SE-M-GL) 1.1”/12MP (4104 x 3006) Ricoh / FL-BC7528 9M X 0 .26 48 x 36 22 0.60 sec
CameraLink@10Tap Camera : Sentech (STC-CMB4MCL-KY) Grabber : Euresvs (Grablink full) 1”/4MP (2048 x 2048) Ricoh / FL-BC5024 9M X 0.19 60 x 60 30 0.25 sec
CameraLink@10Tap Camera : Sentech (STC-CMB4MCL-KY) Grabber : Euresvs (Grablink full) 1”/4MP (2048 x 2048) Ricoh / FL-BC7528 9M X 0.26 44 x 44 22 0.25 sec

** Test Environment

  • PC : CPU i7-9700K, GTX 1080Ti, M.2 NVME SSD
  • Exposure Time : 10 ms
  • Capture time includes grabbing time, GPU operation time, and Image save time

Cameras/Frame grabbers with proven compatibility

Cameras/Frame grabbers with proven compatibility
Interface Vendor Model
USB 3.0, 3.1 IDS UI-xxxx
USB 3.0 Basler All kinds
Camera Link
@10Tap		 Camera : all kinds
Grabber : Euresys		 Camera : all kinds
Grabber : Grablink full

Lens with proven compatibility

Lens with proven compatibility
Vendor Model
RICOH FL-BC5024-9M
RICOH FL-BC7528-9M
Computar V5024-MPZ
KOWA LM-50FC
KOWA LM50JCM-WP
RICOH FL-BC3518-9M
Computer M2518-MPW2
RICOH FL-YFL5028

〈 Specifications 〉

Specifications
TYPE Camera & F.grabber
Vendor(model)		 Camera sensor size
/ no. of pixels		 Lens vendor/Model Lens mag. FOV
(㎟)		 Pixel - resolution
(um)		 Min. SOPM acq. Speed**
(s / 7 image-data save)
USB3.0 IDS (UI-3370CP-M-GL R2) 1”/4MP (2048 x 2048) Ricoh / FL-BC3518 9M X 0.16 70 x 70 34 0.32 sec
USB3.0 IDS (UI-3370CP-M-GL R2) 1”/4MP (2048 x 2048) Ricoh / FL-BC5024 9M X 0.19 60 x 60 30 0.32 sec
USB3.1 IDS (UI-3000SE-M-GL) 1.1”/12MP (4104 x 3006) Ricoh / FL-BC2518 9M X 0 .12 120 x 90 30 0.60 sec
USB3.1 IDS (UI-3000SE-M-GL) 1.1”/12MP (4104 x 3006) Ricoh / FL-BC3518 9M X 0 .16 86 x 63 22 0.60 sec
USB3.1 IDS (UI-3000SE-M-GL) 1.1”/12MP (4104 x 3006) Ricoh / FL-BC5024 9M X 0.22 66 x 48 16 0.60 sec
CameraLink@10Tap Camera : Sentech (STC-CMB4MCL-KY) Grabber : Euresys (Grablink full) 1”/4MP (2048 x 2048) Ricoh / FL-BC3518 9M X 0.16 70 x 70 34 0.25 sec
CameraLink@10Tap Camera : Sentech (STC-CMB4MCL-KY) Grabber : Euresys (Grablink full) 1”/4MP (2048 x 2048) Ricoh / FL-BC5024 9M X 0.19 60 x 60 30 0.25 sec
CameraLink@10Tap Basler (beA4000-62km) Grabber : Euresys (Grablink full) 1.75”/12MP (4080 x 3072) Ricoh / FL-YFL5028 x 0.16 83 x 62 27 0.51 sec

** Test Environment

  • PC : CPU i7-9700K, GTX 1080Ti, M.2 NVME SSD
  • Exposure Time : 10 ms
  • Capture time includes grabbing time, GPU operation time, and Image save time
