Surf.Finder is a surface inspection sensor dedicated to machine vision with a super multi-function. It quantitatively measures surface information such as inclination, roughness, reflection, so that it can stably perform surface inspections such as dents, scratches, air bubbles, stains, etc., which are previously considered impossible. Furthermore, it provides a free-illumination function that not only can freely set arbitrary illumination types such as bar, ring, co-axial, etc. to 24bit color, but also can very quickly switch them.

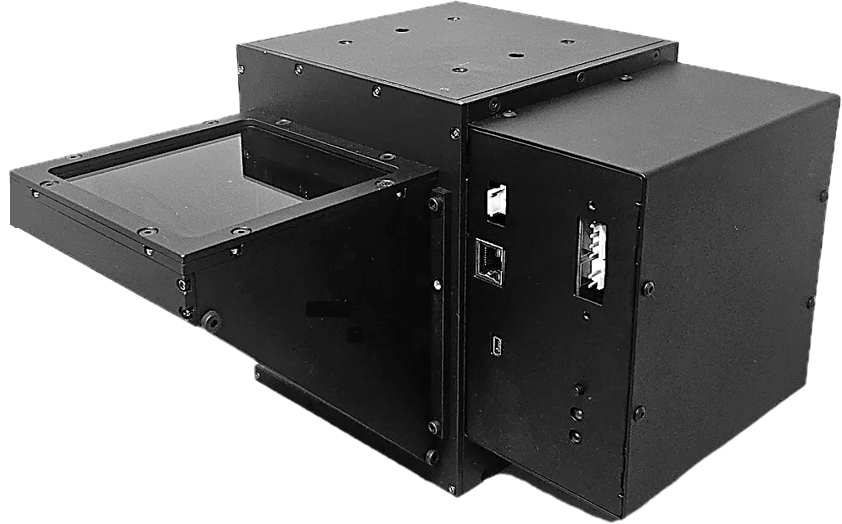

Surf.Finder-CX100 can detect defects such as Dent, Scratch, Stain on the Film, Glass, and Various Flat Materials.

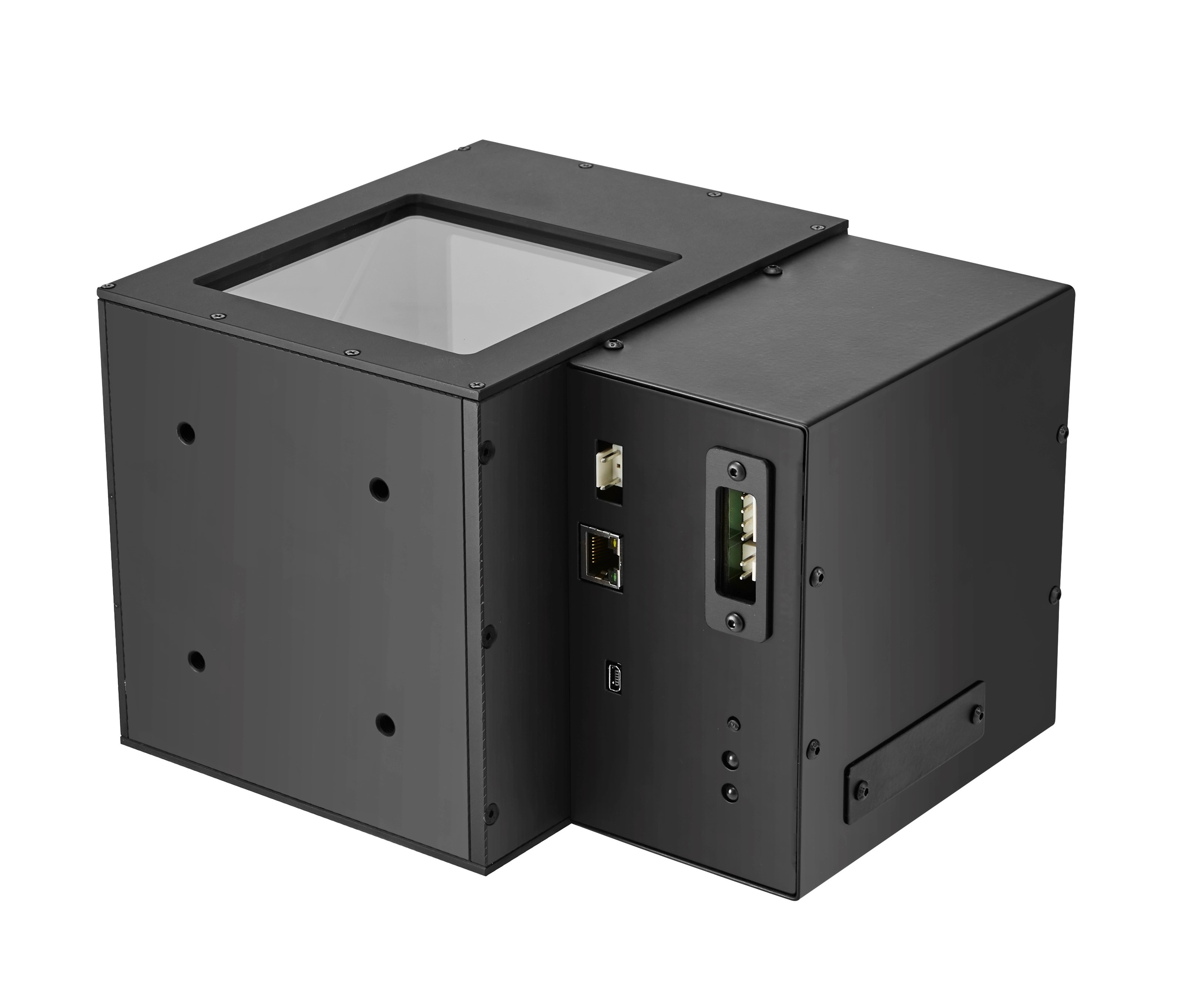

The product is composed of a Free illumination system that covers the upper part, an illumination controller, and an S/W package.
| Illumination | Coaxial type Free-Illumination |
|---|---|
| Basic Processed Images | Inclination, Roughness, Reflectivity |
| Dimension(W x L x H) | 215 x 175 x 142 (mm) |
| Opening for Lens | 100 x 100 (mm) |
| Opening for Object | 115 x 114 (mm) |
| Weight | 3 Kg |
| Typical Working Distance(Sensor to sample) | 20 mm |
| Camera Type | Area Scan Camera |
| FOV | 80 x 80 (mm) |
| Input Voltage | 5V |
| Input Current | 9A |
| Includes | Built-in Controller, S/W Package(SDK, Viewer), LAN cable, SMPS, Dongle key |
| Certificate | RoHS, CE |
| O/S | Windows 10 (64bit) |
|---|---|
| GPU | NVIDIA Graphics 10xx Series or higher performance product |
| Min. Lens Working Distance | 142 mm |
| Camera Type | Mono(area scan) |
| Cameras to use Viewer(UI) | - IDS Gigabit, USB 3.0 Camera(UI-Series, IDS Software suite) - U3, G3 Series(IDS PEAK library) are under compatibility development. - Basler Gigabit, USB 3.0 Camera(Pylon 6) - Hikvision Gigabit, USB 3.0 Camera(MVS) - Euresys Grablink series(Camera Link) - Euresys Coaxlink series(CoaxPress) - Matrox Rapixco CXP series(CoaXpress) |
| Recommended PCI cards | - Gigabit Ethernet PCI Card - USB 3.0 PCI Card (NEC chipset is more stable) |
