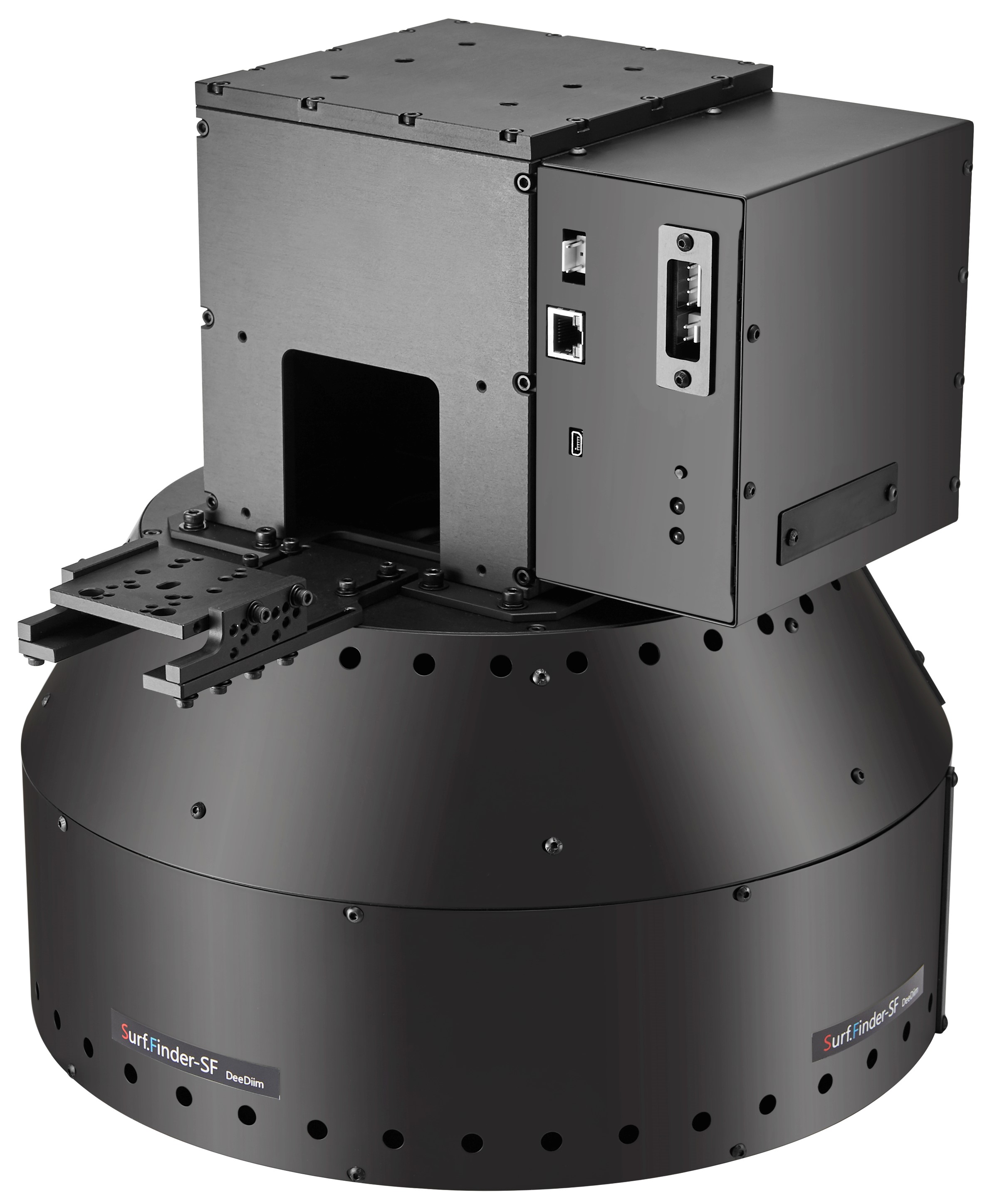

Surf.Finder-SF includes coaxial illumination, so it is
possible to acquire relatively stable data, even for shiny surface
Surf.Finder is a surface inspection sensor dedicated to machine vision with a super multi-function. It quantitatively measures surface information such as inclination, roughness, reflection, so that it can stably perform surface inspections such as dents, scratches, air bubbles, stains, etc., which are previously considered impossible. Furthermore, it provides a free-illumination function that not only can freely set arbitrary illumination types such as bar, ring, co-axial, etc. to 24bit color, but also can very quickly switch them.
The product is composed of a Free illumination system that covers the upper part(including camera hole for SF, excluding camera hole for WV), an illumination controller, and an S/W package.
Illumination | Free-Illumination |
---|---|
Basic Processed Images | Inclination, Roughness, Reflectivity |
Dimension(W x L x H) | 325 x 325 x 330 (mm) |
Dome Opening for Lens | 35 X 35 (mm) |
Min. Lens to DOL | 90 mm |
Weight | 6.9 kg |
Dome Inner Diameter | 258 mm |
Typical Working Distance(Sensor to sample) | 20 mm (relatively flexible) |
Camera Type | Area Scan Camera |
FOV | 60mm x 60mm (max. at WD : 20mm) |
Input Voltage | 5V |
Input Current | 35A (Max.) |
Includes | Built-in Controller, S/W Package (SDK, Viewer) |
Certificate | RoHS, CE |
O/S | Windows 10 (64bit) |
---|---|
GPU | NVIDIA Graphics 10xx Series or higher performance product |
Min. Lens Working Distance | 278 mm |
Camera Type | Mono(area scan) |
Cameras to use Viewer(UI) | · IDS Gigabit, USB 3.0 Camera(UI-Series, IDS Software suite) - U3, G3 Series(IDS PEAK library) are under compatibility development. · Basler Gigabit, USB 3.0 Camera(Pylon 6) · Euresys Grablink series(Camera Link) |
Recommended PCI cards | · Gigabit Ethernet PCI Card · USB 3.0 PCI Card (NEC chipset is more stable) |
Surf.Finder-WV is suitable for non-glare objects with a relatively wide FOV and various camera settings.
Surf.Finder is a surface inspection sensor dedicated to machine vision with a super multi-function. It quantitatively measures surface information such as inclination, roughness, reflection, so that it can stably perform surface inspections such as dents, scratches, air bubbles, stains, etc., which are previously considered impossible. Furthermore, it provides a free-illumination function that not only can freely set arbitrary illumination types such as bar, ring, co-axial, etc. to 24bit color, but also can very quickly switch them.
The product
is composed of a Free illumination system that covers the upper part(including
camera hole for SF, excluding camera hole for WV), an illumination controller,
and an S/W package.
Illumination | Free-Illumination |
---|---|
Basic Processed Images | Inclination, Roughness, Reflectivity |
Dimension(W x L x H) | 325 x 325 x 474 (mm) |
Dome Opening for Lens | 35 X 35 (mm) |
Min. Lens to DOL | 15 mm |
Weight | 8.0 kg |
Dome Inner Diameter | 258 mm |
Typical Working Distance | 20 mm (relatively flexible) |
Camera Type | Area Scan Camera |
FOV | 120mm x 120mm (typically max.) |
Input Voltage | 5V |
Input Current | 27A (Max.) |
Includes | Built-in Controller, S/W Package (SDK, Viewer) |
Certificate | RoHS, CE |
O/S | Windows 10 (64bit) |
---|---|
GPU | NVIDIA Graphics 10xx Series or higher performance product |
Min. Lens Working Distance | 175 mm |
Camera type | Mono(area scan) |
Cameras to use Viewer(UI) | · IDS Gigabit, USB 3.0 Camera(UI-Series, IDS Software suite) - U3, G3 Series(IDS PEAK library) are under compatibility development. · Basler Gigabit, USB 3.0 Camera(Pylon 6) · Euresys Grablink series(Camera Link) |
Recommended PCI cards | · Gigabit Ethernet PCI Card · USB 3.0 PCI Card (NEC chipset is more stable) |
